Indoor Siren alarm

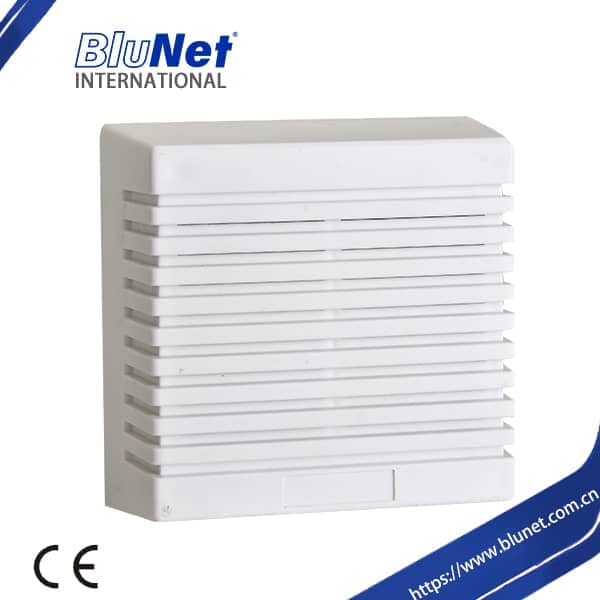

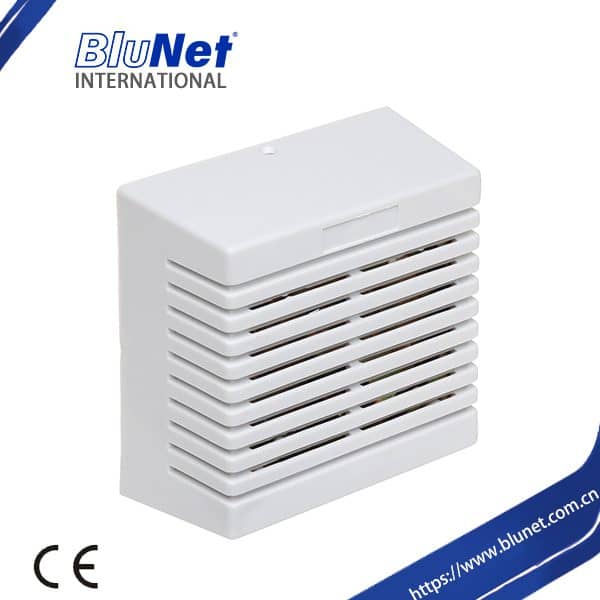

Indoor Siren 15Watts ES-110

15 Watt Indoor Siren surface mounting, Dual Tone for Intrusion alarm system.

The DSW ES-110 is a self-contained, surface-mount interior siren with steady, warble tone options.
It is designed as an accessory for household burglar alarm systems and is also suitable as an audible signal appliance for fire alarm systems.

Feature

Dual Tone 15 Watts Siren.

Feature	Specification
Minimum Sound Pressure Level (Min. S.P.L.)	102 dB at 12VDC/1m, 8 Ohm
Tone	Steady & Warble
Power	15 Watts
Operating Voltage	6 to 14 VDC
Maximum Current (Max. Current)	550 mA at 12VDC
Material	White ABS Plastic
Magnet Size	Diameter x Height: 60mm x 32mm x 10mm

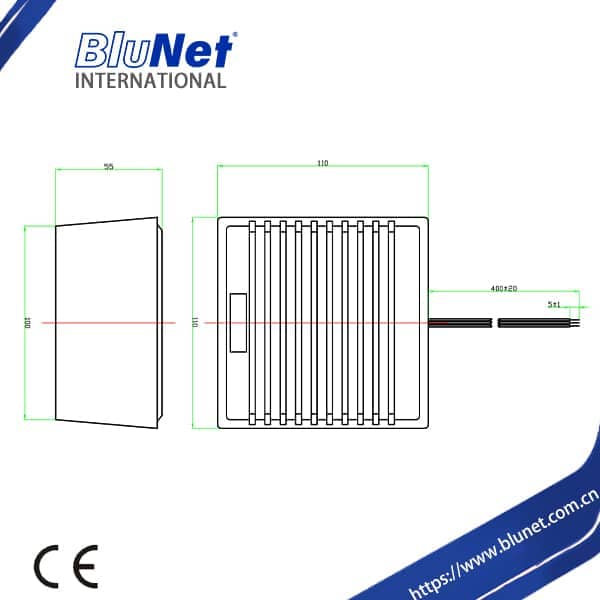

Dimension	110mm x 110mm
Operating Temperature	20°C to 65°C
Weight	400g
Packing Dimension	33cm x 25cm x 38cm (per 30 pieces)

Dual tone alarm internal siren – steady and warble
Indoor/outdoor use
High dB output
The 102 dB SPL alarm internal siren alerts the occupier and any neighbours to alarm activity at the property.
DSW provides indoor and outdoor sirens, strobe xenon, and magnetic contacts for house security systems, with options including LED, wired, and decoy.

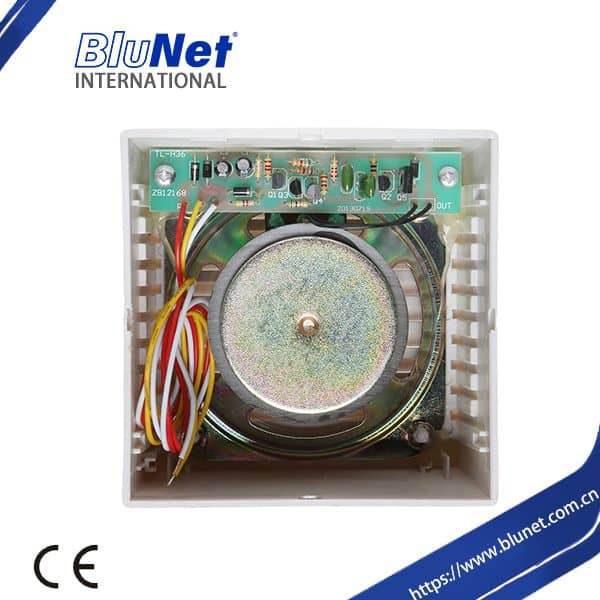

These self-contained alarm sirens have built-in siren drivers for house alarm systems. They are our most popular because they work with all systems and do not require a separate driver board. Our electronic siren is an excellent addition to any compatible security alarm system. It is a 6-12 V DC combination speaker and siren driver.

Applications

Internal siren alarms are primarily used in various environments to provide an audible alert for security, safety, or operational signals within indoor spaces. Here are some common applications:
Home Security Systems:

• Used to alert occupants of unauthorized entry or breaches in doors or windows.
• Often connected to motion sensors and door/window sensors to sound an alarm if intruders are detected.

Commercial and Office Buildings:

• Alerts staff and visitors of security breaches, fire alarms, or emergency situations.
• Can be connected to access control systems to provide warnings in restricted areas.

Fire and Safety Alarms:

• Sounds a loud alarm to alert people inside buildings of fire hazards, allowing safe and quick evacuation.
• Integrated with smoke detectors, carbon monoxide detectors, and emergency lighting systems.
