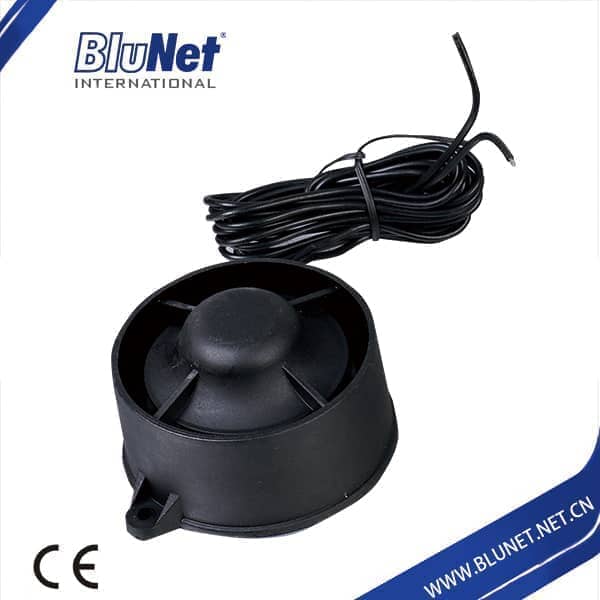

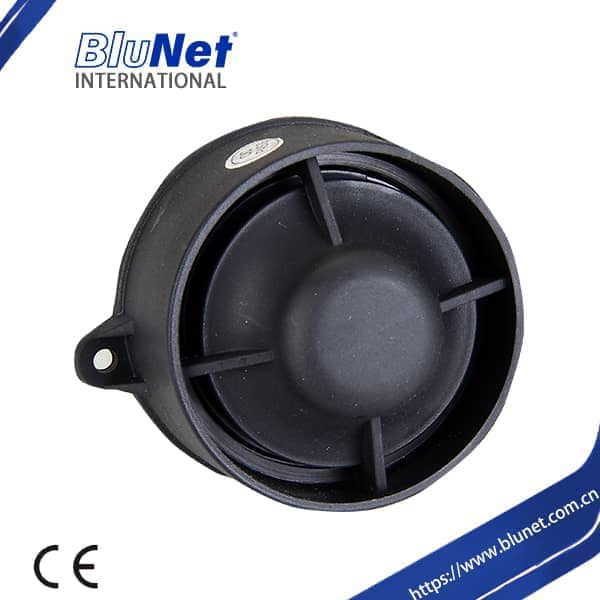

Speaker Horn Driver

Compression Driver CR49

The design of horn driver allows them to produce high sound pressure levels (SPL) with less electrical power, making them suitable for large venues and outdoor events.
Compression drivers are valued in professional audio due to their ability to reproduce sound accurately at high volumes.
Impedance: 4 Ohm
Voice Coil:Dia. 25.4mm
Magnet:24.5*3.5
Reson Freq:1400 to 4000Hz
Power Rating:15W
Min Spl:106.5dB
Housing:Nylon
Oper.Temp.:-20 to +70C
Weight:108g
Remark: NeFeB Magnetic

Speaker Horn Driver CR49

DSW Electronics Manufacures a range of speaker horn drivers, siren driver aimed squarely at European outdoor siren,car alarm, alarm system manufacturer,
these range from small unit with ceramic piezo to horn loaded 6″ units.

Neodymium magnetic horn driver
Neodymium magnets are composed of neodymium, boron, iron and a few transition metals. These magnets are referred to as NdFeB or Neo magnets.
The strength of neodymium means that the magnets needed for speaker construction are much smaller than those used in other types of speakers.
Typically neodymium magnets are capable of generating high flux levels in a transducers magnetic gap which increases efficiency and lowers distortion.
horn drivers with wide bandwidth and high excursion capabilties are more easily produced with neodymium magnets.

Features
Indoor/outdoor use
High dB output, compact size

Speaker Horn Driver CR49
Speaker Horn Driver CR49
Speaker Horn Driver CR49
Speaker Horn Driver CR49

DSW speaker driver is the loudest self-contained dual tone alarm siren you can buy today. It can be installed indoors or outdoors.
Our Alarm siren is a great addition to any compatible security alarm system. The alarm siren is a 6-12 V DC combination speaker and siren driver. DSW alarm siren is dual tone – warble or steady.
