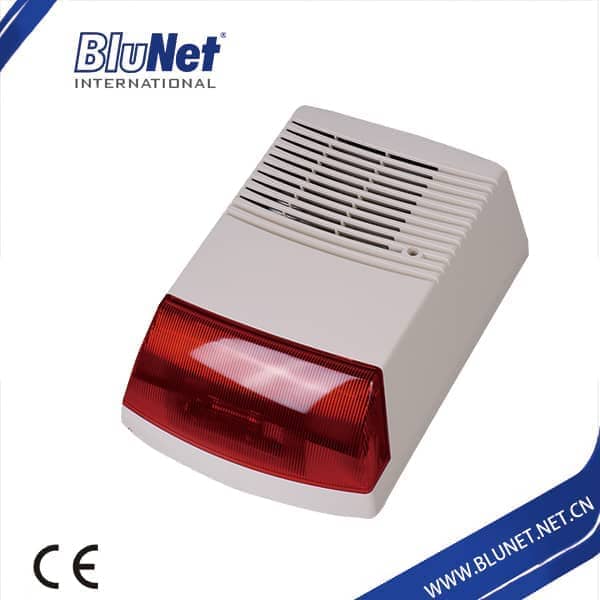

Combined Siren & Strobe
DSW, a professional manufacturer specializing in siren and strobe combinations, proudly presents its advanced outdoor siren with strobe light.
Designed for ultimate security, this device combines a 120dB loud siren with a high-visibility strobe in a durable, weather-resistant design. This versatile solution enhances any alarm system’s effectiveness for residential, commercial, or industrial use.
Specifications of EAS190B
| Parameter | Value |
|---|---|
| Product Type | 12-volt outdoor siren |
| Impedance | 8 Ohms |
| Input Voltage | 14VDC |
| Operating Voltage | 6 to 15VDC |
| Minimum SPL | 120 dB SPL/Meter |
| Maximum Current | 1400 mA |
| Flash Rate | 120 flashes per minute |
| Strobe Lens Material | Acrylic |
| Tone Nature | Warble |
| Housing Material | White ABS Plastic |
| Weight | 1.3 kg |
| Remark | Features electronic board, OEM ready |
Features
- Combined Siren & Strobe: Dual functionality for enhanced auditory and visual alerts.
- High Decibel Output: Produces sound pressure levels exceeding 120 dB, ensuring alerts are heard from a distance.
- Weather-Resistant Design: Constructed with UV-resistant ABS plastic housing for long-lasting outdoor use.
- Tamper Protection: Equipped with plunger-type tamper switches to safeguard against unauthorized access.
- Easy Installation: Plug-and-play design simplifies installation and reduces setup time.
- Self-Powered Operation: Battery backup ensures continuous functionality during power failures.
Applications
- Residential Security: Protect homes with a loud and visible alarm system.
- Commercial Use: Perfect for shops, offices, and public spaces needing robust alarm systems.
- Industrial Facilities: Reliable in harsh environments with durable housing and tamper resistance.
Siren with strobe light EAS-190B or B1

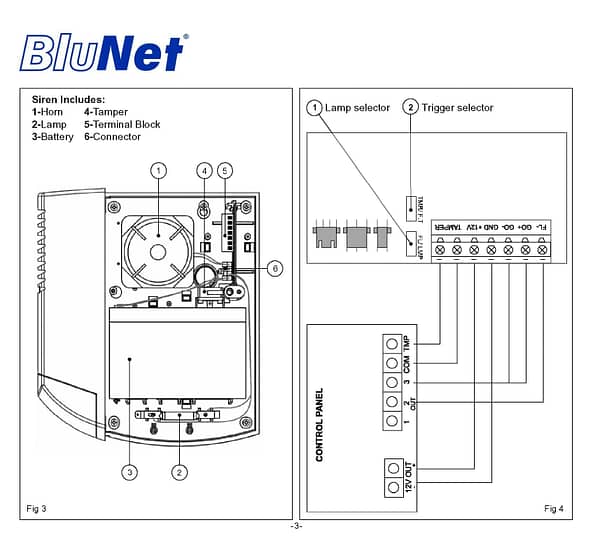

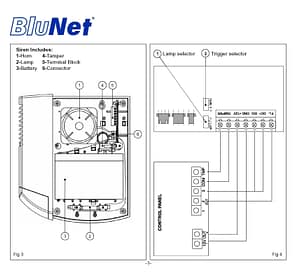

The EAS-190 is a self-contained siren in a tamper and weather-resistant ABS enclosure.
It features two sealed reed tamper switches, one on the back plate and one on the front cover.
The switches are typically closed and pre-wired in series. The EAS-190B can produce two distinct sounds from a single input trigger.
Battery back-up Outdoor siren with a flashlight.
Double housing: external-3mm plastic PC with UV,internal-0.8mm metal.
Continuous frequency modulated sound Tamper protection in 3 ways – screw or cover opening or tearing housing from the wall Positive and negative alarm trigger inputs Trigger input to activate only the flashlight Siren period can ser as follow trigger or 3 min cutoff Selector for lamp or Xenon Alarm by primary power failure Protecting against totally battery discharge.
Plug terminal for easy installation Environmental immunity.

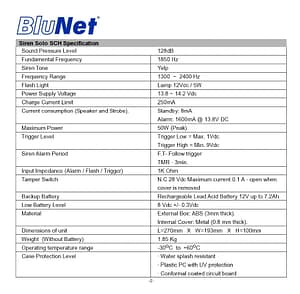

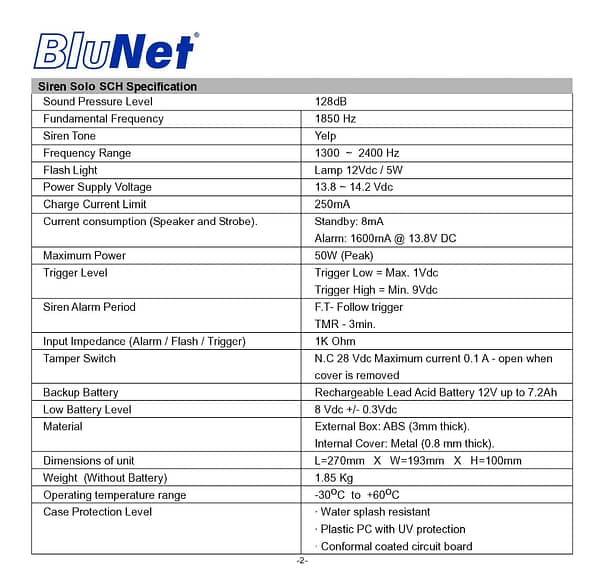

EAS190B Specification Sheet
Why Choose DSW?
- Expertise: As a leader in siren-strobe combinations, DSW brings years of industry expertise.
- Quality Assurance: Manufactured to the highest standards with durable components and advanced technology.
- Customization: OEM-ready solutions tailored to meet specific project requirements.
- Comprehensive Support: From design to deployment, DSW ensures a seamless experience.
