Horn Speaker Driver

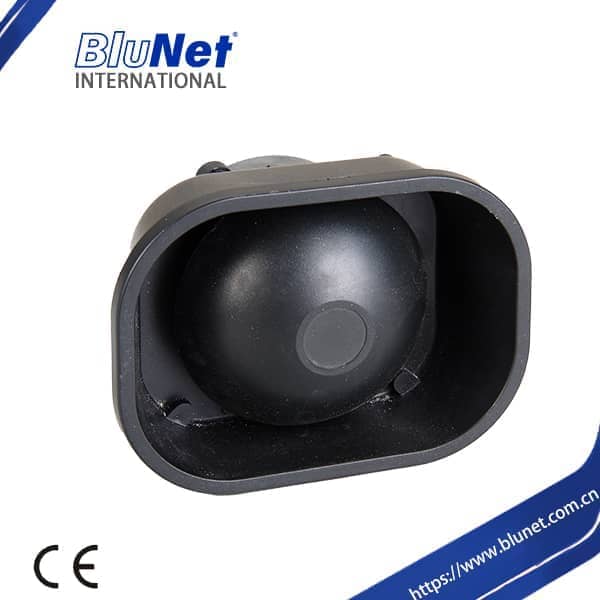

Speaker Driver H104S

A horn driver, also known as a compression driver, is a specialized type of speaker driver designed to work together with a horn-shaped enclosure to create loud, directional sound.

  • Unmatched Sound Output: Delivers the loudest alarm signal among self-contained dual-tone sirens, maximizing deterrence and security awareness.
  • Versatile Installation: Suitable for indoor and outdoor, offering flexibility in security system design.
  • Broad Compatibility: Designed to function seamlessly with a wide range of compatible security alarm systems, simplifying integration.
  • Power Source: Operates on a 6-12 VDC power supply, ensuring compatibility with various electrical systems.

Converts electrical signals into sound waves, similar to a regular speaker driver.
Utilizes a horn to amplify and direct the sound waves it produces.

Horn Speaker Driver H104S

DSW Industry has been a leading manufacturer of horn speaker drivers, siren alarms, outdoor sirens, smoke alarms, and motion detectors for over 20 years.

DSW’s horn speakers and compression drivers are efficient, incredibly durable, and loud.
They are often used inside outdoor sirens, burglar alarm systems, and house security systems, such as homes, airports, factory buildings, camping sites, and office buildings.
The compression driver is most potent in the mid-range and higher frequencies.

Dual Tone 15 – 20Watt Siren.

Specification Data

Feature Description
Impedance 6 Ω at 1 kHz
Voice Coil Diameter 25.4 mm
Magnet Size 60 x 32 x 10 mm
Resonance Frequency 600 Hz to 8 kHz
Power Rating (RMS) 15 W
Minimum Sound Pressure Level (SPL) 95 dB/W/m
Housing Material Black ABS Plastic
Operating Temperature 20°F to 60°F
Weight 360 g
Yoke Type Real T
Horn Speaker Driver H104S
Horn Speaker Driver H104S


Operating voltage: 6 – 14 VDC
Sound output: 120 dB @ 12 VDC, High dB output
Current draw: 1.1 A @ 12 VDC
Dimensions: 9.25″ x 6.1″ x 8.1″
Colour: Black ABS Plastic
Material: High-impact plastic
Application: Indoor/outdoor use

Benefits of Horn Drivers:

  • High Efficiency: They convert electrical signals into sound waves very efficiently, producing louder sound with less power than regular drivers. This makes them ideal for large venues like concert halls or public address systems (PA systems).
  • Directionality: The horn focuses the sound waves in a specific direction, allowing them to travel further and be more targeted at the audience. This is useful for loudspeakers or stage monitors.
  • Treble Focus: Horns excel at reproducing high frequencies (treble) due to their ability to effectively control the shorter wavelengths of sound.


DSW Siren Driver- Power of Sound

This integrated solution combines a powerful horn speaker and a reliable siren driver within a single, self-contained unit.
Our Alarm siren is an excellent addition to any compatible security alarm system. It is a 6-12 V DC combination speaker and siren driver.
DSW introduces the industry-leading self-contained dual-tone alarm siren featuring our powerful horn speaker.
This versatile siren offers both indoor and outdoor installation options, making it a valuable addition to various security systems.

Additional information

Weight 10 kg
Dimensions 20 × 34 × 32 cm
