Alarm Control Panels

¥47.00

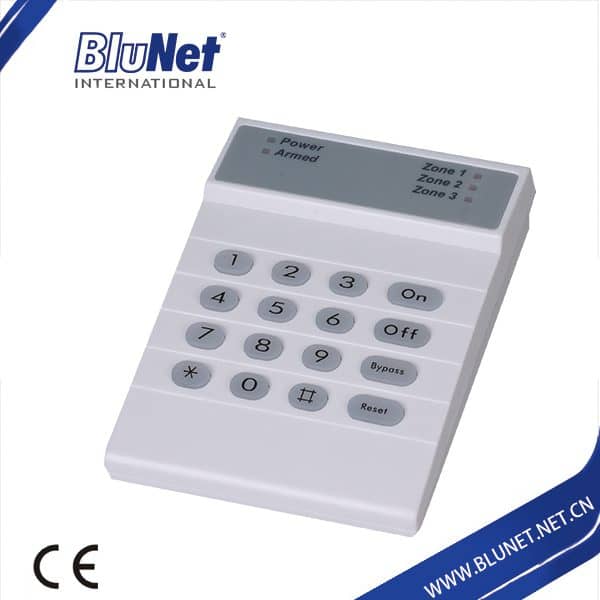

Alarm Control Panels DSM-300

Enclosure Design
Color: Frost White
Indicators: 3 zone LEDS, 2 status LEDs
Dimensions (HxWxD):
Environmental Considerations
Relative Humidity: 0% to 85% noncondensing
Temperature (Operating): 20°C to +50°C

Outputs
Alarm Relay: Form “C”,contacts rated at 3 A @ 28 VDC or 120 VAC
Solid-State: Two DC current sinks; 250 mA maximum per output at 0.1 VDC saturation.
Power Requirements
Current Draw: 30 mA standby, 70 mA alarm
Voltage (Input): 10.2 VDC to 15 VDC
Zone Characteristics
EOL Resistors: 10 kΩ
Response Time: 500 ms

Tags
Categories
FacebookXPinterestRedditLinkedinWhatsappTelegram

Alarm Control Panels DSM-300

DSW industry is one of leading outdoor siren, alarm control panel, strobe light, motion detector solution providers since 1998, offering clients with expertise across a various of electric siren, piezo siren, fire alarm, smoke detectors, pir detectors, and alarm system.

3 zones and a separate key-switch input
3 user codes and an unlock door code
Quick Arm function
Built-in piezo buzzer
Built-in tamper switch
Keys back-lit by LEDs

The mini panel has three alarm input zones,one alarm relay output,two solid-state outputs,key switch input,instant input and supports three user PIN codes including the master code and one door unlock PIN code.

Additional information

Weight 41 kg
Dimensions 23 × 55 × 34 cm
