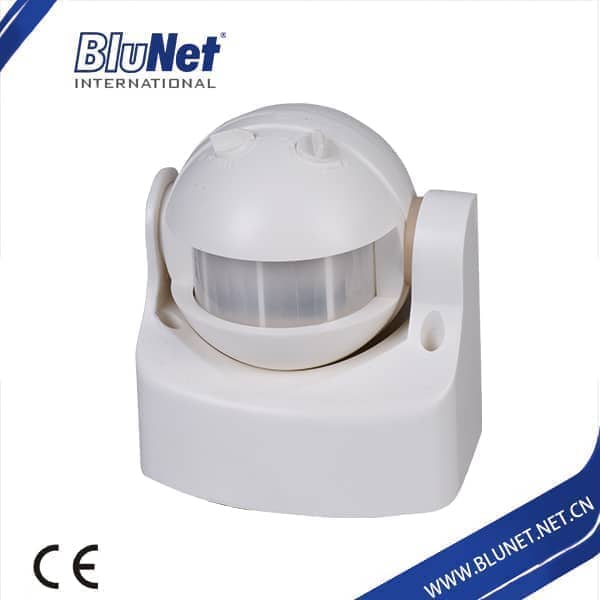

PIR Motion Detector DPS38

¥29.00

PIR Motion Detector DPS38

Power source:220V/AC-240V/AC   100V/AC-130V/AC
Power frequency:50~60Hz
Ambient light:<3LUX-daylight
Time-delay:min: 8+/-3sec  max: 7+/-2min
Rated load:1200W (220-240V/AC)  800W (110V/AC)
3000W(220-240V/AC) 1500W (110V/AC)
Detection motion speed: 0.6-1.5m/s
Detection range:360
Detection distance:12m max(<24 )
Working temperature: -20C~40C
Working humidity:<93%RH
Installation height:1.5-3.5m
Power consumption:0.45W(static 0.1W)
Switch Function: Auto/Off/Manual Override

PIR Motion Detector DPS38

Heavy Duty sirens driver
Powerful 25 Watts

Features

Specs
Power source: 220-240VAC 50Hz/60Hz
100-130VAC 50Hz/60Hz
All loads:1200W (220-240VAC)
800W (100-130VAC)
Time setting: 10sec-12min (adjustable)
Light-control: 10-2000Lux (adjustable)
Detection range: 12m Max (22℃)
Detection angle: 180° 140°
Working temperature: -10°C -+40°C
Working humidity: <93%RH
Installation height: 1.8m~2.5m
Detection motion speed: 0.6-1.5m/s

PIR sensors are more complicated than many of the other sensors explained in these tutorials (like photocells, FSRs and tilt switches) because there are multiple variables that affect the sensors input and output.
Our Alarm siren is a great addition to any compatible security alarm system. The alarm siren is a 6-12 V DC combination speaker and siren driver. DSW alarm siren is dual tone – warble or steady.

Additional information

Weight 10 kg
Dimensions 20 × 34 × 32 cm
